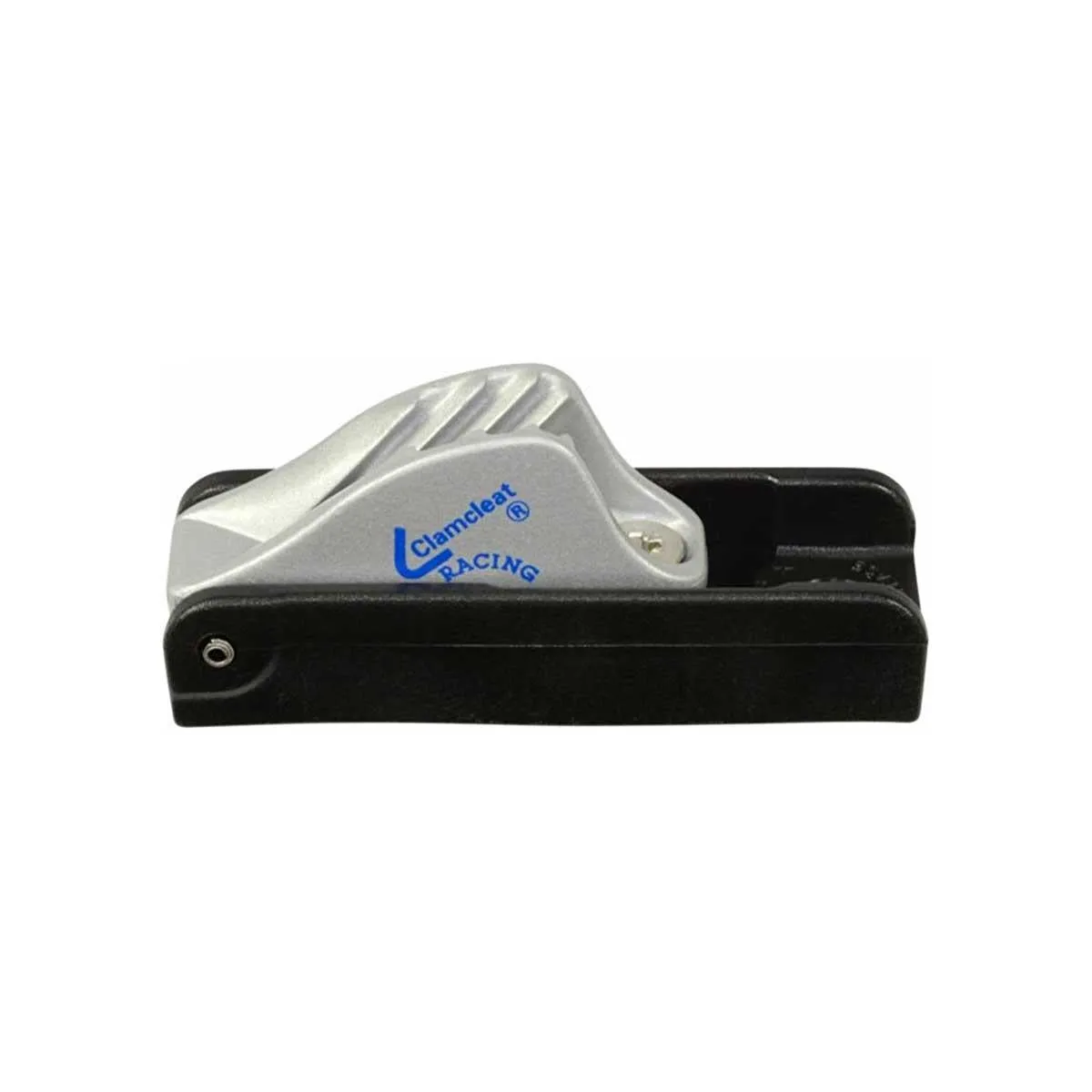

Clamcleat Auto-Release Racing Mini Cleat - CL257

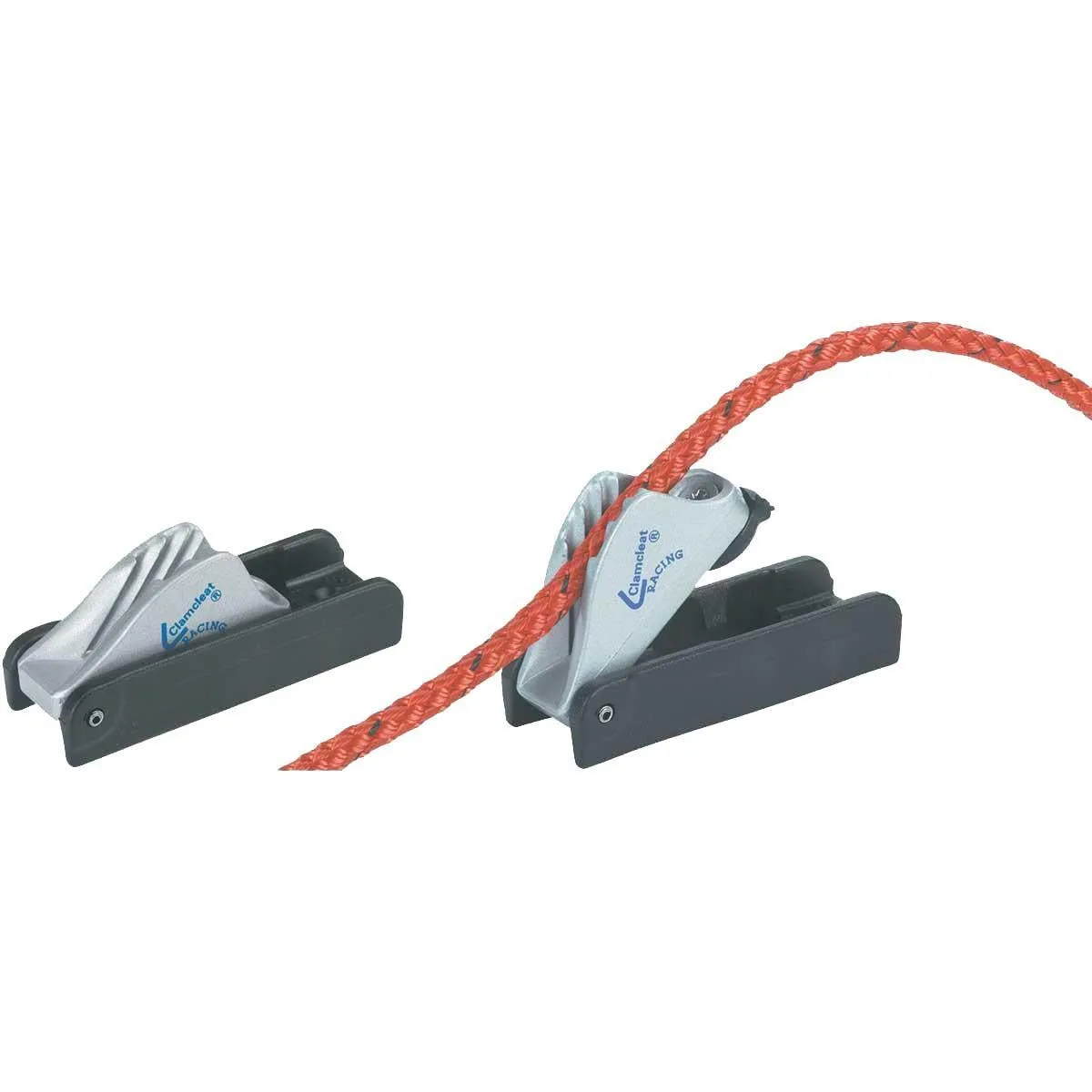

The Clamcleat CL257 Auto-Release cleat holds ropes securely but will release them immediately when the cleat is overloaded. Once tripped, it can be easily reset in seconds by just pushing the cleat back down into its base.

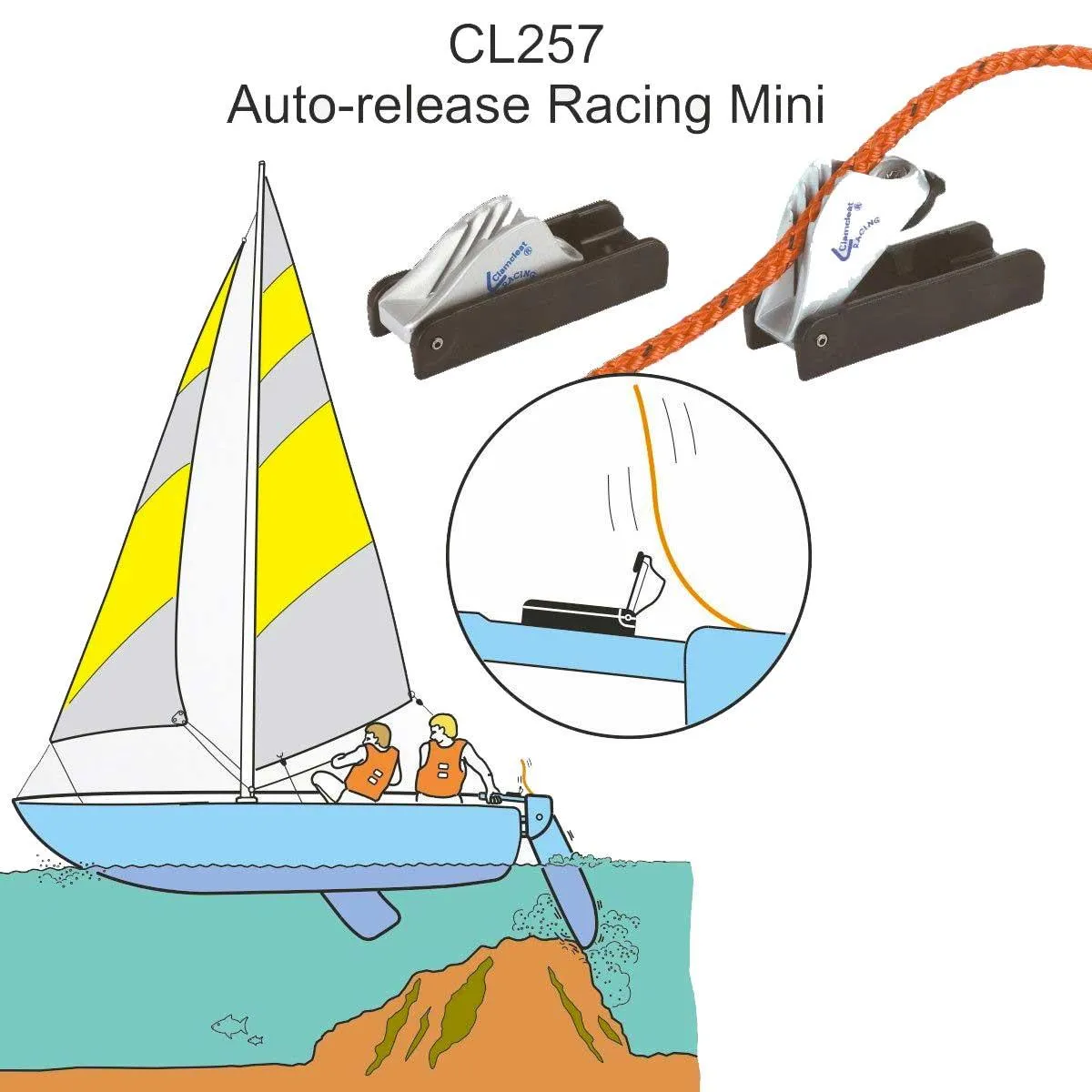

This release cleat is perfect for locking down your rudder blade yet allowing it to flip-up if it hits the bottom or a solid obstacle in the water.
The CL257 is also fitted with an adjustable cam so that the release tension can be set to suit the boat and local conditions. The cam is adjusted until the rudder blade is held down reliably under maximum sailing conditions. The CL257 will then be set so that the least strain is put on the rudder if it hits an obstacle.
The CL257 can be fitted to virtually all lifting tillers and can also be used to protect centre boards.
How it Works Video

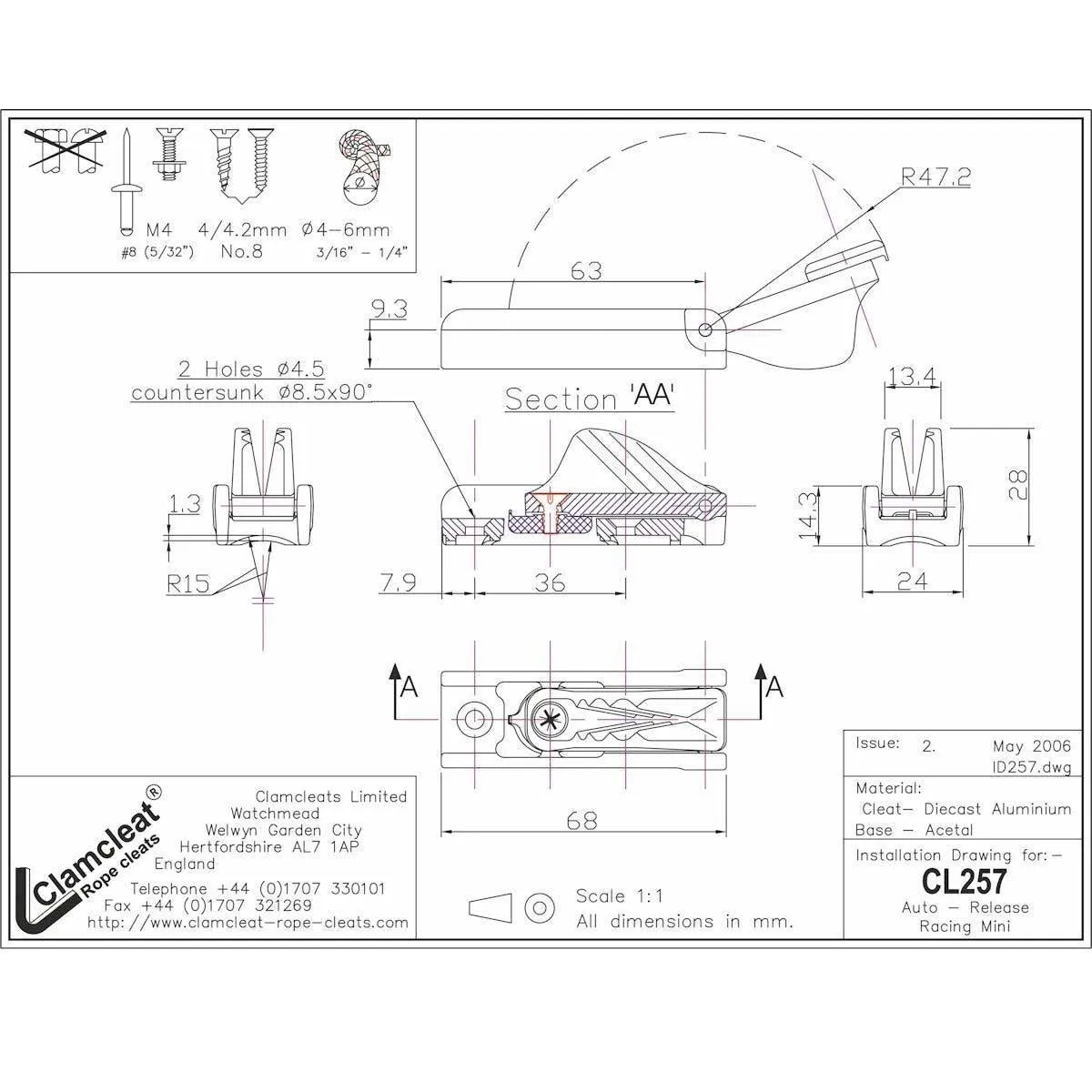

Specifications
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 4 - 6mm | 5/32 - 1/4" | |
| Material | Aluminium & Acetal | Aluminium & Acetal | |
| Hole Centres | 36mm | 1 3/8" | |
| Length | 68mm | 2 5/8" | |
| Width | 22mm | 7/8" | |
| Height | 28mm | 1 1/8" | |
| Bolt Size | M4 | #8-32. 5/32" | |
| Screw Size | 4.2 | No 8 | |
| Weight | 31gms | 1.1oz |
